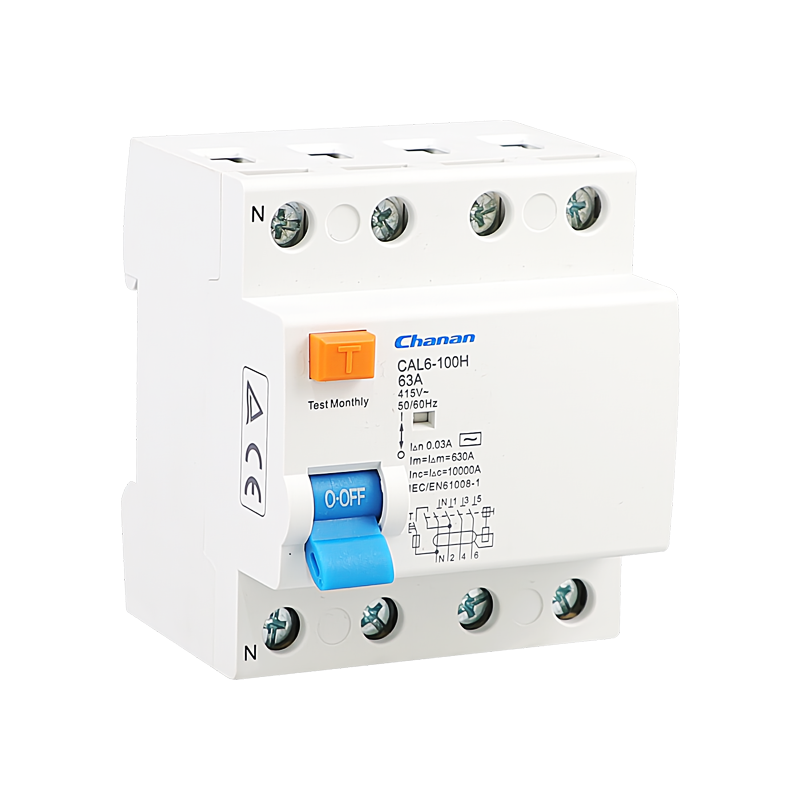

CAL6-100H 10kA Residual Current Circuit Breaker RCCB

Overview:
CAL6-100H Residual Current Circuit Breaker suitable for earth leakage protection of 25-100A AC distribution system, large terminal port 35mm², both sides can use pin-type or U-type busbar; High safety performance, over 30 mA current, and power failure in 3 milliseconds; Independently developed and produced all parts and components independently.
if need any qualification or test report,please email to info@changangroup.com.cn
Inquire Now

CAL6-100H 10kA Residual Current Circuit Breaker RCCB

Inquire Now
Description

CAL6-100H Residual Current Circuit Breaker suitable for earth leakage protection of 25-100A AC distribution system, large terminal port 35mm², both sides can use pin-type or U-type busbar; High safety performance, over 30 mA current, and power failure in 3 milliseconds; Independently developed and produced all parts and components independently.

Parameter
Standard  IEC/EN61008-1
Protection Ground fault
Type of trip Electro-magnetic
Type of protection (electric leakage) AC, A, G, S
No. of poles 2P(1P+N), 4P(3P+N), N Pole on left
Rated currents (In) 16,25,32,40,63,80,100A
Rated sensitivity currents I△n 10,30,100,300mA (10mA only for In=16-25A)
Residual current off-time under I△n ≤0.1s
Rated residual making and breaking capacity(I△m) 500A(In=16-40A),10In (In=63-100A)
Rated voltage (Ue) 1P+N:230/240V~,3P+N:400/415V~
Rated frequency 50/60Hz
Rated breaking capacity 10,000A
SCPD fuse 10000
Rated impulse with standard voltage (1.5/50) Uimp 4,000V
Dielectric test voltage at Ind. Freq. for 1 min 2kV
Electrical life 2,000Cycles
Mechanical life 4,000Cycles
Contact position indicator Yes
Ground fault indicator Yes
Protection degree IP20
Ambient temperature -5℃ to +40℃, Max.95% humidity
Terminal connection type Cable/Pin-type busbar
Max. terminal size for cable 35mm2
Max. tightening torque 2.5N.m
Installation Mounting on 35mm DIN rail
Connection From top and bottom



Circuit Diagram

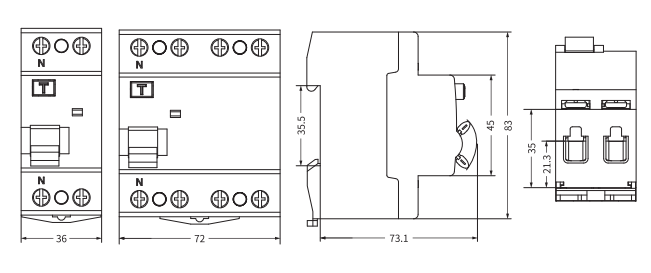

Overall and Installation Dimension(mm)

Product Selection Form
