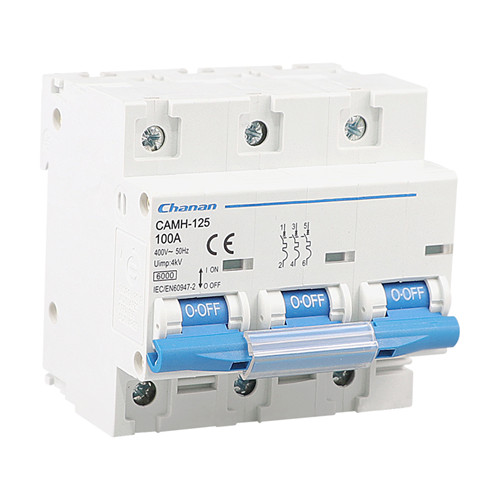

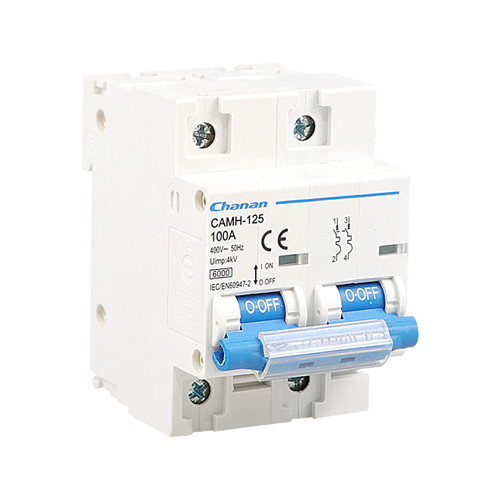

CAMH-125 Circuit Breaker Suitable for high-voltage load places, high-current load protection and control, distribution line overload or short-circuit protection, manual control and segmentation, and residual current action protection accessories, no derating. Also used in industry and large-scale construction.
CAMH-125 Circuit Breaker Suitable for high-voltage load places, high-current load protection and control, distribution line overload or short-circuit protection, manual control and segmentation, and residual current action protection accessories, no derating. Also used in industry and large-scale construction.
| Electrical Features | Rated current In | 63,80,100,125A |
| Poles | 1P,1P+N,2P,3P,3P+N,4P | |
| Rated voltage Ue | 240/415V | |
| Insulation voltage Ui | 500V | |
| Rated frequency | 50/60Hz | |
| Rated breaking capacity | 10,000A | |
| Energy limiting class | 3 | |
| Rated impulse withstand voltage(1.5/50) Uimp | 4,000V | |
| Dielectric test voltage at ind. Freq. for 1 min | 2kV | |
| Pollution degree | 2 | |
| Thermo-magnetic release characteristic | 8-12In | |
| Mechanical Features | Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles | |
| Contact position indicator | Yes | |
| Protection degree | IP20 | |
| Reference temperature for setting of thermal element | 30℃ | |
| Ambient temperature (with daily average≤35℃) | -5℃~+40℃ | |
| Storage temperature | -25℃~+70℃ | |
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 50mm2 18-2AWG | |
| Terminal size top/bottom for busbar | 50mm2 18-2AWG | |
| Tightening torque | 3.5Nm 30In-Ibs | |
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | Power supply in both directions | |
| Combination with accessories | Auxiliary contact | Yes |
| Alarm contact | Yes | |
| Shunt release | Yes | |
| Over/Under voltage release | Yes |
MCB Characteristics Curves
| Thermal Tripping | Magnetic Tripping | |||||
| Asper IEC60947 | No tripping current | Tripping current I2 | Time Limits t | Hold current I4 | Trip current I5 | Time Limits t |
| 63-125A | 1.05xIN | ≥2h | 8xIN | ≥0.2s | ||
| 1.30xIN | ＜1h | 12xIN | ＜0.2s | |||
|
Thermal Tripping |
Magnetic Tripping |
|||||
|
Asper IEC60898 |
No tripping current |
Tripping current I2 |
Time Limits t |
Hold current I4 |
Trip current I5 |
Time Limits t |
|
B Curve |
1.13×IN |
≥1h |
3×IN |
≥0.1s |
||
|
1.45×IN |
＜1h |
5×IN |
＜0.1s |
|||
|
C Curve |
1.13×IN | ≥1h | 5×IN | ≥0.1s | ||
| 1.45×IN | ＜1h |
10×IN |
＜0.1s | |||

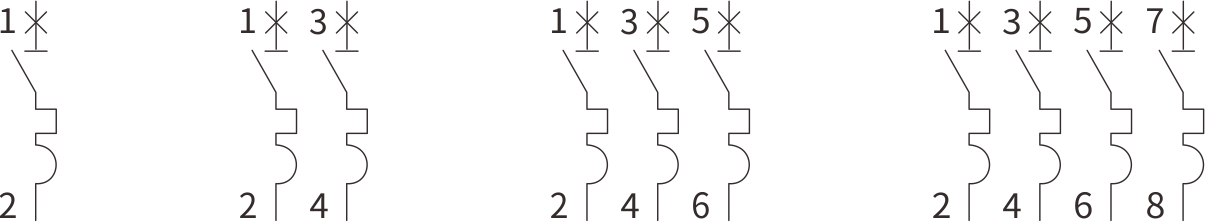

Circuit Diagram

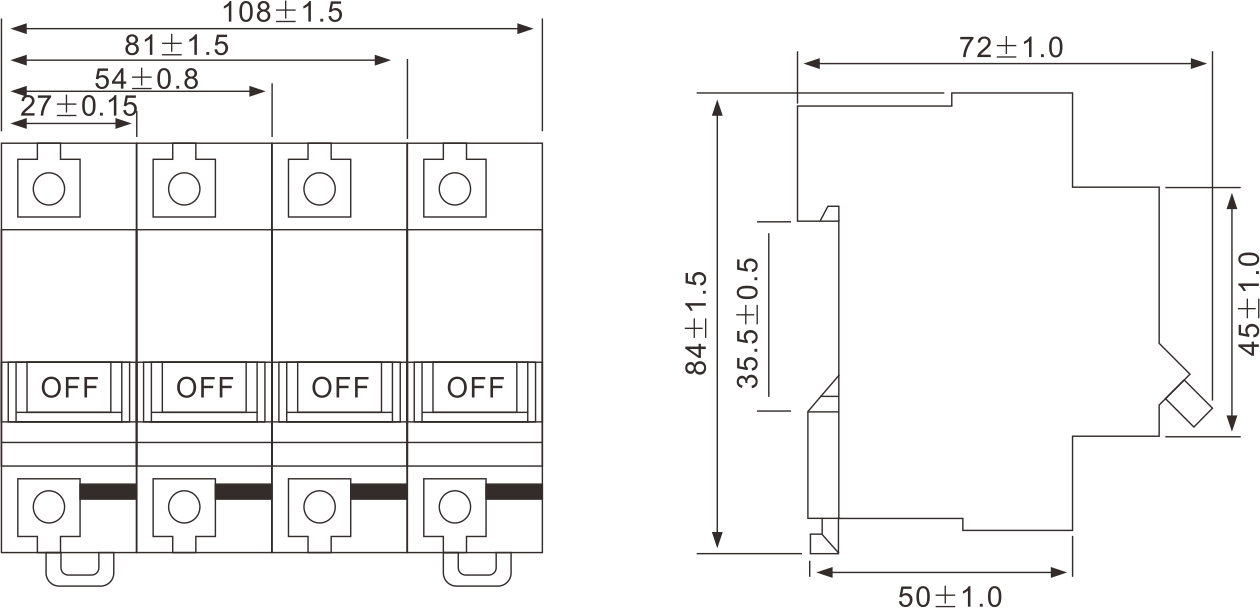

Overall and Installation Dimension(mm)
