CAB2-32N DPN Circuit Breaker is compact in structure and has two poles in the width of 18mm;The insulated casing of the circuit breaker is provided with a contact arc extinguishing system, a four-link quick acting mechanism and a thermal-electromagnetic tripping mechanism, and is suitable for a 35mm rail card type Installation, especially suitable for homes, shopping malls and other places.
CAB2-32N DPN Circuit Breaker is compact in structure and has two poles in the width of 18mm;The insulated casing of the circuit breaker is provided with a contact arc extinguishing system, a four-link quick acting mechanism and a thermal-electromagnetic tripping mechanism, and is suitable for a 35mm rail card type Installation, especially suitable for homes, shopping malls and other places.
| Electrical Features | Rated current In | 6,8,10,13,16,20,25,32A |
| Poles | 1P+N | |
| Rated voltage Ue | 230/240V~ | |
| Insulation voltage Ui | 500V | |
| Rated frequency | 50/60Hz | |
| Rated breaking capacity | 6,000A | |
| Energy limiting class | 3 | |
| Rated impulse withstand voltage(1.5/50) Uimp | 4,000V | |
| Dielectric test voltage at ind. Freq. for 1 min | 2kV | |
| Pollution degree | 2 | |
| Thermo-magnetic release characteristic | B,C | |
| Mechanical Features | Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles | |
| Contact position indicator | Yes | |
| Protection degree | IP20 | |
| Reference temperature for setting of thermal element | 30℃ | |
| Ambient temperature (with daily average≤35℃) | -5℃~+40℃ | |
| Storage temperature | -25℃~+70℃ | |
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 16mm2 18-5AWG | |
| Terminal size top/bottom for busbar | 16mm2 18-5AWG | |
| Tightening torque | 1.5Nm 14In-lbs | |
| Mounting | On DIN rail EN60715(35mm) by means of fast clip device | |
| Connection | Power supply in both directions | |
| Combination with accessories | Auxiliary contact | Yes |
| Alarm contact | Yes | |
| Shunt release | Yes | |
| Over/Under voltage release | Yes |
MCB Characteristics Curves
|
Thermal Tripping |
Magnetic Tripping |
|||||||
|
Asper IEC60898 |
No tripping current |
Tripping current I2 |
Time Limits t |
Hold current I4 |
Trip current I5 |
Time Limits t |
||
|
B Curve |
1.13×IN |
≥1h |
3×IN |
≥0.1s |
||||
|
1.45×IN |
＜1h |
5×IN |
＜0.1s |
|||||
|
C Curve |
1.13×IN | ≥1h | 5×IN | ≥0.1s | ||||
| 1.45×IN | ＜1h |
10×IN |
＜0.1s | |||||
Tripping characteristics
Based on the Tripping Characteristics, MCB are available in“ B”,“ C”and“ D”curve to suit different types of applications.
“B”Curve for protection of electrical circuits with equipment that does not cause surge current (lighting and distribution circuits) Short circuit release is set to (3-5)In.
“C”Curve for protection of electrical circuits with equipment that cause surge current (inductive loads and motor circuits) Short circuit release is set to (5-10)In.
Circuit Diagram

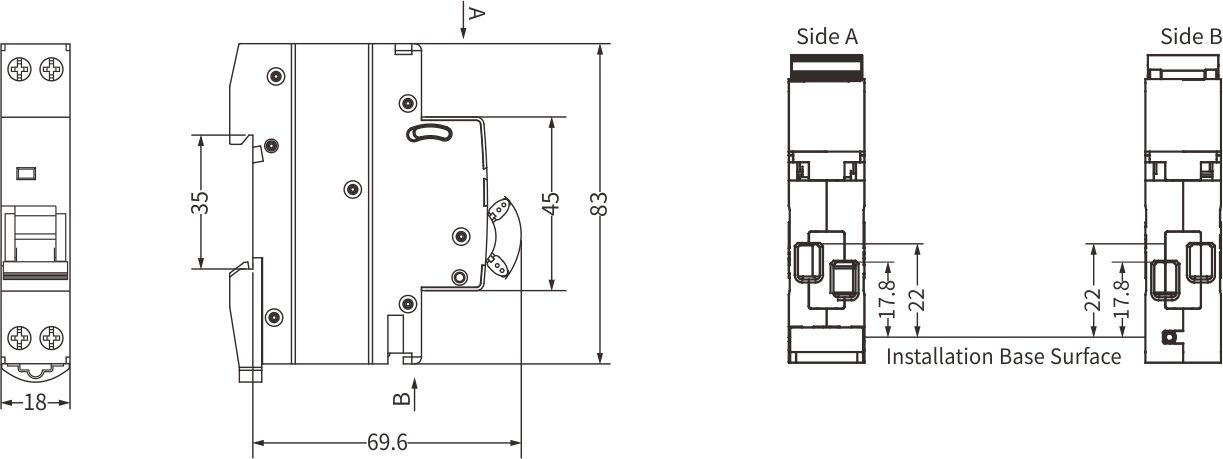

Overall and Installation Dimension(mm)
