Application: remote making & breaking circuits; protect circuit from over-load when assembling with thermal over-load relay; frequent start-up and control of AC contactor;
Electric value: AC50/60Hz, 690V, up to 95A; Utilization category: AC-3, AC-4;
Altitude: ≤2000m;
Ambient temperature: -5℃~+40℃; Mounting category: Ⅲ;
Mounting conditions: inclination between the mounting plane and the vertical plane should not exceed ±5°;
Standard: IEC/EN 60947-4-1. IEC/EN 60947-5-1.
Control Coil Voltage (AC Coil Operation) | ||||||||||||||||
Volts (VAC) |
24 |
36 |
42 |
48 |
110 |
127 |
220 |
230 |
240 |
380 |
415 |
440 |
480 |
500 |
600 |
|
Code |
50Hz |
B5 |
C5 |
D5 |
E5 |
F5 |
G5 |
M5 |
P5 |
U5 |
Q5 |
N5 |
R5 |
- |
S5 |
Y5 |
|
60Hz |
B6 |
- |
D6 |
E6 |
F6 |
G6 |
M6 |
- |
U6 |
Q6 |
- |
R6 |
T6 |
- |
- |
|
50/60Hz |
B7 |
- |
D7 |
E7 |
F7 |
- |
M7 |
P7 |
- |
Q7 |
N7 |
R7 |
- |
- |
- |
Control Coil Voltage (DC Coil Operation) | ||||||||||||||||
Volts (VDC) | 12 | 24 | 36 | 48 | 110 | 220 | ||||||||||
Code | JD | BD | CD | ED | FD | MD |
C | C | 1 | 09 | 11 | Z |
Company code |
Contactor |
Design sequence NO. |
Basic specification, expressed with the rated operational current (380V/400V, AC3) |
Number of contacts 10: 3N/O main contacts+1N/O auxiliary contact (9A,12A,18A,25A,32A) 01: 3N/O main contacts+1N/C auxiliary contact (9A,12A,18A,25A,32A) 11: 3N/O main contacts+1N/O and 1N/C auxiliary contact (9A,12A,18A,25A,32A,40A,50A,65A,80A,95A) 04: 4N/O main contacts (9A,12A,25A,40A,50A,65A,80A,95A) 08: 2N/O and 2N/C main contacts (9A,12A,25A,40A,50A,65A,80A,95A) |
Z: DC operation Blank: AC operation |
Standard | IEC/EN60947-4-1 IEC/EN60947-5-1 | ||||||||||

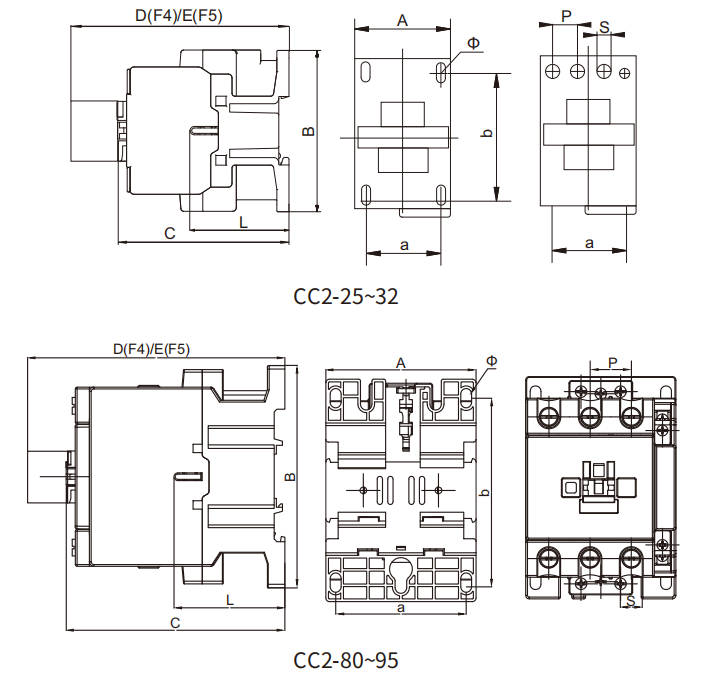

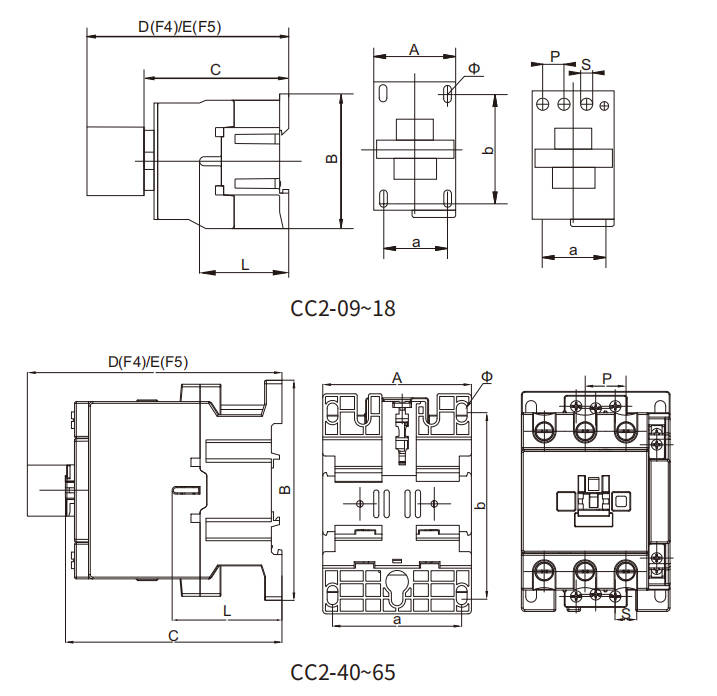

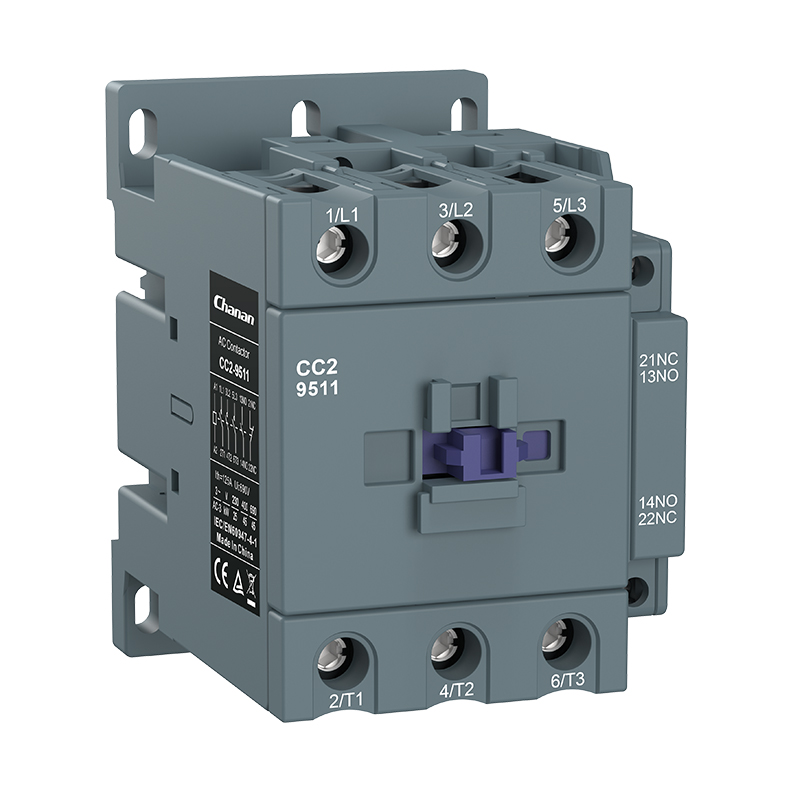

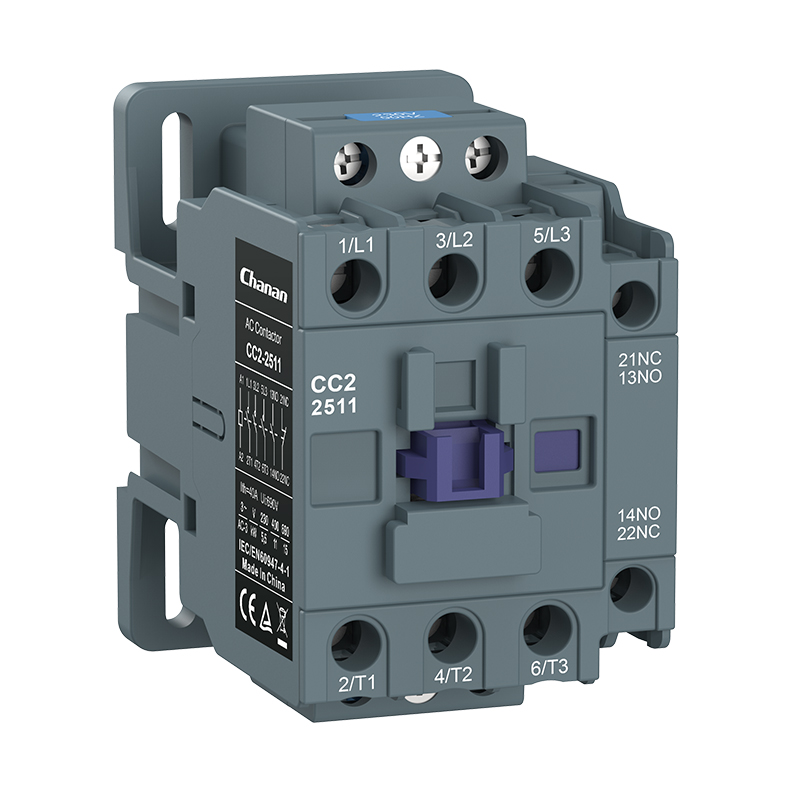

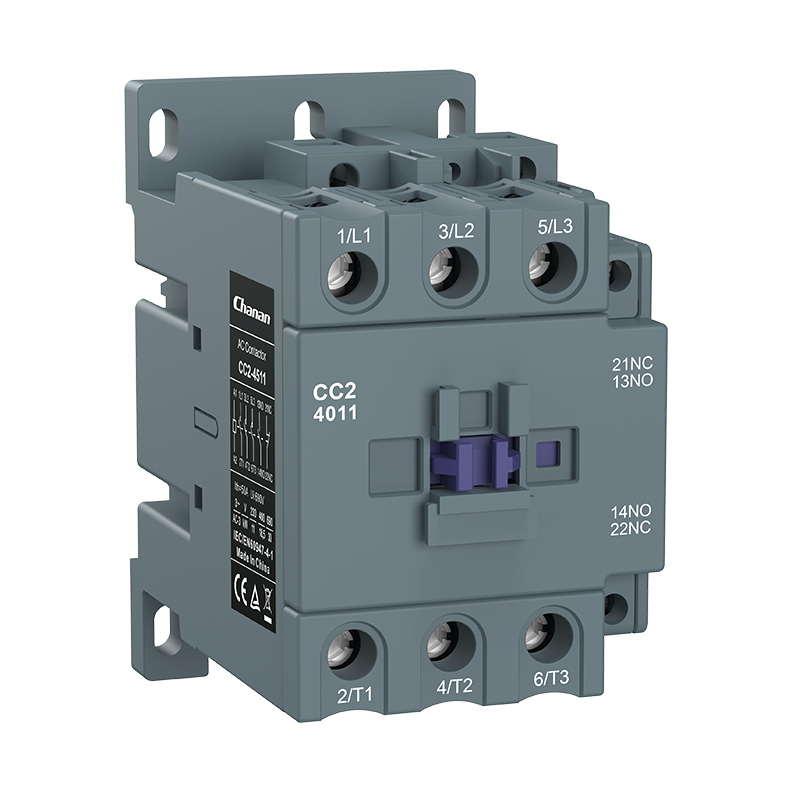

Model No. | CAC2-09 | CAC2-12 | CAC2-18 | CAC2-25 | CAC2-32 | CAC2-40 | CAC2-50 | CAC2-65 | CAC2-80 | CAC2-95 | |
Rated Conventional Heating Current | Ith(A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 100 | 125 |
Rated Voltage Ui(V) | Ui(V) | 690 | |||||||||
Rated Operation Current Ue=380/415V |
AC-3 Ie(A) | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
AC-4 Ie(A) | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | |
Power Controlled 3ph cage Motor AC-3 |
220/240V KW | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
380/415V KW | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | |
660/690V KW | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 45 | |
AC-3 | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 600 | 600 | 600 | 600 | |
Electrical life (x103 operations) | AC-4 | 200 | 200 | 200 | 200 | 200 | 150 | 150 | 150 | 100 | 100 |
Mechanical life (x106 operations) | 10 | 10 | 10 | 10 | 8 | 8 | 8 | 8 | 6 | 6 | |
Matched Fuse | Size | RT16-00 | |||||||||
A | 20 | 20 | 32 | 40 | 50 | 63 | 80 | 80 | 100 | 125 | |
Main circuit | 3P or 4P | ||||||||||
Auxiliary circuit Cat.:AC-15, Ue=415V Ie=0.95A Ith=10A |
1NO / 1NC / 1NO + 1NC |
Model | Cabling cross section (Cu) | screw size |
Tightening torque (N.m) |
|||
Number of piece | Flexible cable with cold-pressed socket (mm2) | Flexible cable without cold-pressed socket (mm2) | Inflexible cable (mm2) | |||
CAC2-09 | 1~2 | 2.5 | 4 | 4 | M3.5 | 0.8 |
CAC2-12 | 1~2 | 2.5 | 4 | 4 | M3.5 | 0.8 |
CAC2-18 | 1~2 | 4 | 6 | 6 | M3.5 | 0.8 |
CAC2-25 | 1 | 4 | 10 | 6 | M4 | 1.2 |
2 | 4 | 6 | 6 | M4 | 1.2 | |
CAC2-32 | 1 | 4 | 10 | 6 | M4 | 1.2 |
2 | 4 | 6 | 6 | M4 | 1.2 | |
CAC2-40 | 1 | 10 | 16 | 10 | M4 | 3.5 |
2 | 10 | 10 | 10 | M8 | 3.5 | |
CAC2-50 | 1 | 16 | 25 | 25 | M8 | 3.5 |
2 | 16 | 16 | - | M8 | 3.5 | |
CAC2-65 | 1 | 16 | 25 | 25 | M8 | 3.5 |
2 | 16 | 16 | - | M8 | 3.5 | |
CAC2-80 | 1 | 50 | 50 | 50 | M8 | 3.5 |
2 | 25 | 35 | - | M10 | 4 | |
CAC2-95 | 1 | 50 | 50 | 50 | M10 | 4 |
2 | 25 | 35 | - | M10 | 4 |
