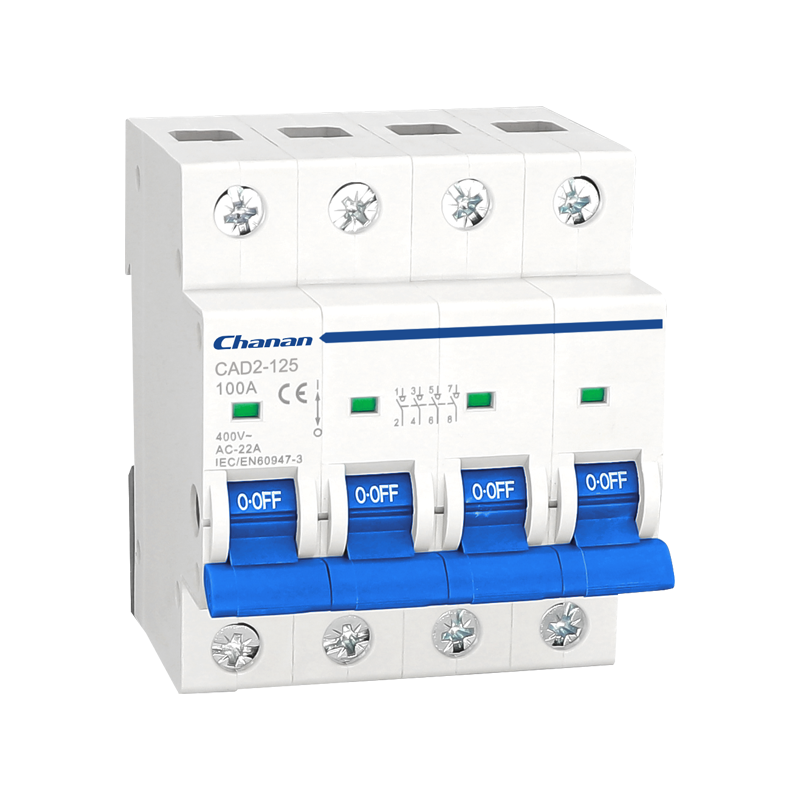

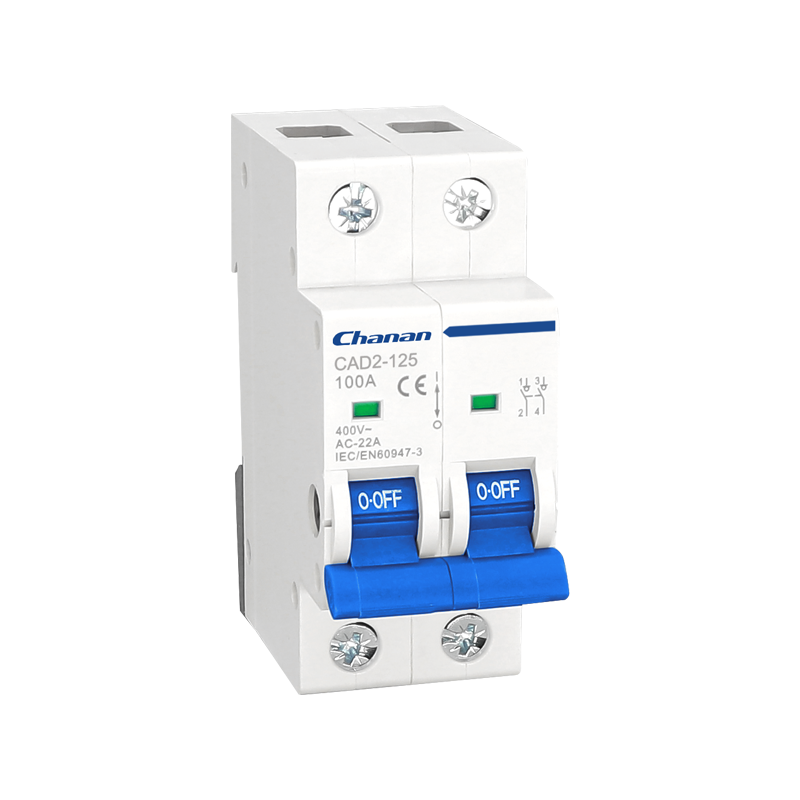

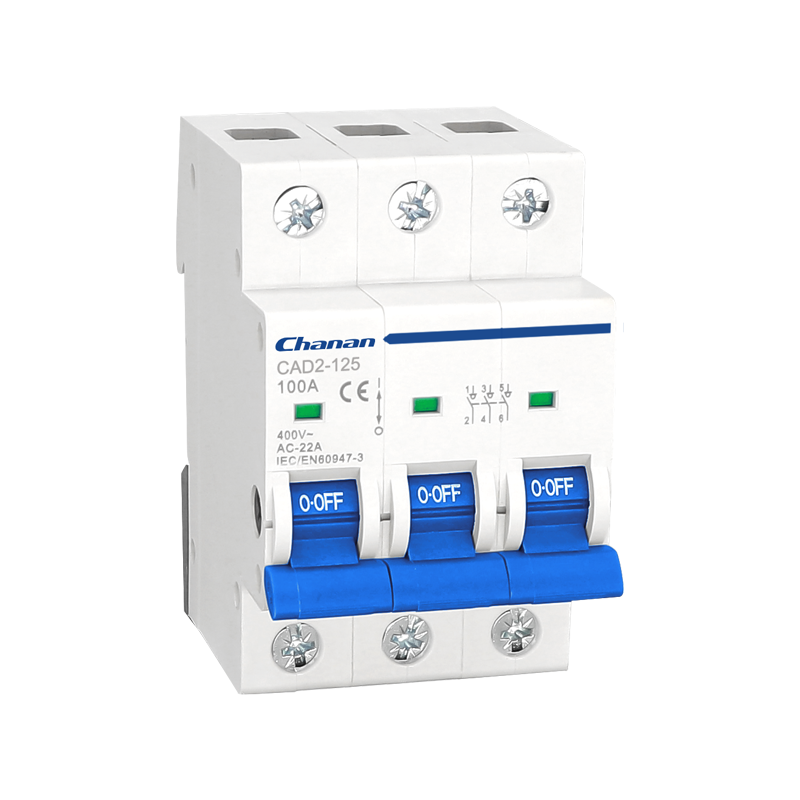

CAD2-125 MCB Isolator Switch with contact indication

Overview:
CAD2-125 Isolator Switch is suitable for AC 50Hz or 60Hz, rated current 125A, rated working voltage 230V and 400V or below in the power distribution; It is mainly used as the main switch of terminal electrical appliances and also control various types of electric motors, small power appliances and lighting places; Its mechanical life is 10,000 times, of which the electrical life is 4,000 times.
if need any qualification or test report,please email to info@changangroup.com.cn
Inquire Now

CAD2-125 MCB Isolator Switch with contact indication

Inquire Now
Description

CAD2-125 Isolation Switch is suitable for AC 50Hz or 60Hz, rated current 125A, rated working voltage 230V and 400V or below in the power distribution; It is mainly used as the main switch of terminal electrical appliances and also control various types of electric motors, small power appliances and lighting places; Its mechanical life is 10,000 times, of which the electrical life is 4,000 times.

Parameter
Standard IEC/EN60947-3
Rated current In 16,20,32,40,50,63,80,100,125A
Poles 1P,2P,3P,4P
Rated voltage Ue 240/415V
Insulation voltage Ui 500V
Rated frequency 50/60Hz
Short-time withstand current Icw 12Ie,1s
Rated short circuit making capacity 20Ie, t=0.1s
Rated making and breaking capacity 3Ie,1.05Ue, cosφ=0.65
Rated impulse withstand voltage (1.5/50) Uimp 4,000V
Dielectric test voltage at ind.Freq. for 1min 2.5kV
Utilization category AC-22A
Rated insulation voltage Ui 690V
Electrical life 2,000 Cycles
Mechanical life 10,000 Cycles
Contact position indicator Yes
Protection degree IP20
Terminal connection type Cable/Pin-type busbar
Max. terminal for cable 50mm2
Max. tightening torque 3.5N.m
Mounting Mounting on 35mm DIN rail
Connection From top and bottom

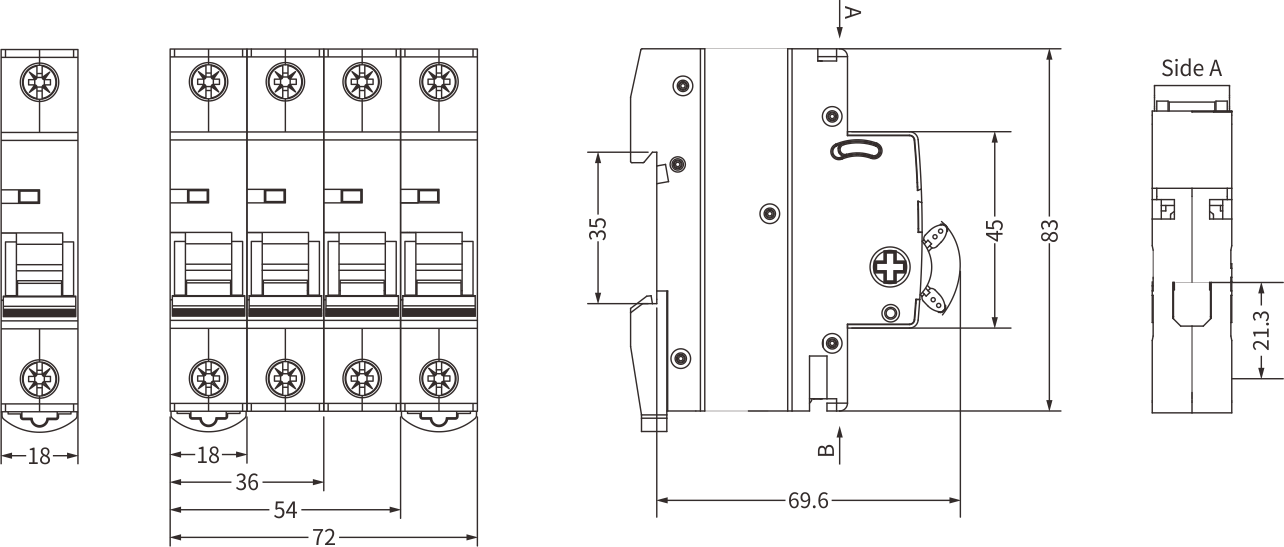

Overall and Installation Dimension(mm)
