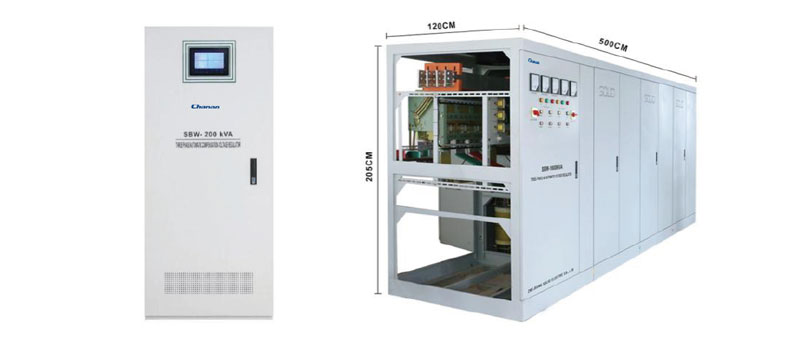

Multi functional LCD screen
Wide AC input voltage range
Powerful load capacity, bypass switch
Easy operation, manual and automatic power
transmission function
Industrial strength components
100% unbalanced loading capacity between three phases
Full protection assrued
| Specification | 30kVA | 50kVA | 80kVA | 100kVA | 150kVA | 200kVA | 250kVA | 300kVA | 350kVA | 400kVA | 500kVA | 600kVA | |
| Input | Phase | Single phase:175V-256V; Three phase four lines: (Phase voltage:175V-265V), (Line Voltage:300V-465V) |
|||||||||||
| Voltage | 220/230/240 for single phase, 380/400/415 for 3 phase | ||||||||||||
| Frequency | 50/60Hz | ||||||||||||
| Output | Voltage | 380V/400V±1~5% adjustable | |||||||||||
| Power factor | 0.8 | ||||||||||||
| Frequency | 50/60Hz | ||||||||||||
| Protection | Under voltage | Yes | |||||||||||
| Over voltage | Yes | ||||||||||||
| Over heat | Yes | ||||||||||||
| Overload capability | 150% up to 10 minutes" | ||||||||||||
| Surge & spike voltage | Yes | ||||||||||||
| Phase sequence | Yes | ||||||||||||
| Others | Insulation Resistance | ≥5MΩ | |||||||||||
| Waveform Distortion | No waveform distortion | ||||||||||||
| Cabinet quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Efficiency | AC-AC | 0.95 | |||||||||||
| Acoustic | Noise level | ≤50dB | |||||||||||
| Condition | Temperature | -40℃ ~ +45℃ | |||||||||||
| Humidity | 20%~90% | ||||||||||||
| Others | Correction speed | Less than 1 second when voltage fluction is less than 10% | |||||||||||
| Specification | 600kVA | 1000kVA | 1200kVA | 1600kVA | 2000kVA | 2500kVA | |
| Input | Phase | Single phase:175V-256V; Three phase four lines: (Phase voltage:175V-265V), (Line Voltage:300V-465V) |
|||||
| Voltage | 220/230/240 for single phase, 380/400/415 for 3 phase | ||||||
| Frequency | 50/60Hz | ||||||
| Output | Voltage | 380V/400V±1~5% adjustable | |||||
| Power factor | 0.8 | ||||||
| Frequency | 50/60Hz | ||||||
| Protection | Under voltage | Yes | |||||
| Over voltage | Yes | ||||||
| Over heat | Yes | ||||||
| Overload capability | 150% up to 10 minutes" | ||||||
| Surge & spike voltage | Yes | ||||||
| Phase sequence | Yes | ||||||
| Others | Insulation Resistance | ≥5MΩ | |||||
| Waveform Distortion | No waveform distortion | ||||||
| Cabinet quantity | 2 | 3 | 3 | 3 | 4 | 4 | |
| Efficiency | AC-AC | 0.95 | |||||
| Acoustic | Noise level | ≤50dB | |||||
| Condition | Temperature | -40℃ ~ +45℃ | |||||
| Humidity | 20%~90% | ||||||
| Others | Correction speed | Less than 1 second when voltage fluction is less than 10% | |||||
