Cable Connector Tube are electrical accessories that are used to securely connect or combine two power wires. Power cables are crimped on both sides of the ferrule for a solid connection. Electrolytic copper is used to make ferrules. Ferrules are available in two finishes: bare and tin plated. Divided into straight type (for the same cross-section of Al & Cu cables) and Reducing type (for different cross-sections of Al & Cu cables).

Parameter

Technical Data

GTY copper cable connector

Material: E-Cu
Surface treatment: Tin-plated
Product property: Tin-plated
Product property: It is used to connect copper conductor joint.

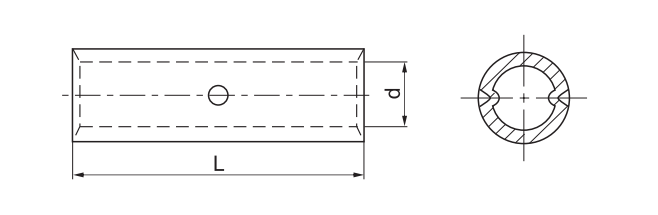

Type	Dimensions(mm)
Type	L	d
GTY-1-1.5	20	1.9
GTY-1-2.5	20	2.8
GTY-1-4	20	3.2
GTY-1-6	25	3.7
GTY-1-10	30	4.5
GTY-1-16	35	5.7
GTY-1-25	40	7.2
GTY-1-35	45	8.5
GTY-1-50	50	9.8
GTY-1-70	55	11.5
GTY-1-95	60	13.7
GTY-1-120	65	15
GTY-1-150	70	16.7
GTY-1-185	75	19.2
GTY-1-240	80	21
GTY-1-300	85	24
GTY-1-400	90	27
GTY-1-500	100	30
GTY-1-630	110	35
GTY-1-800	150	39
GTY-1-1000	170	44

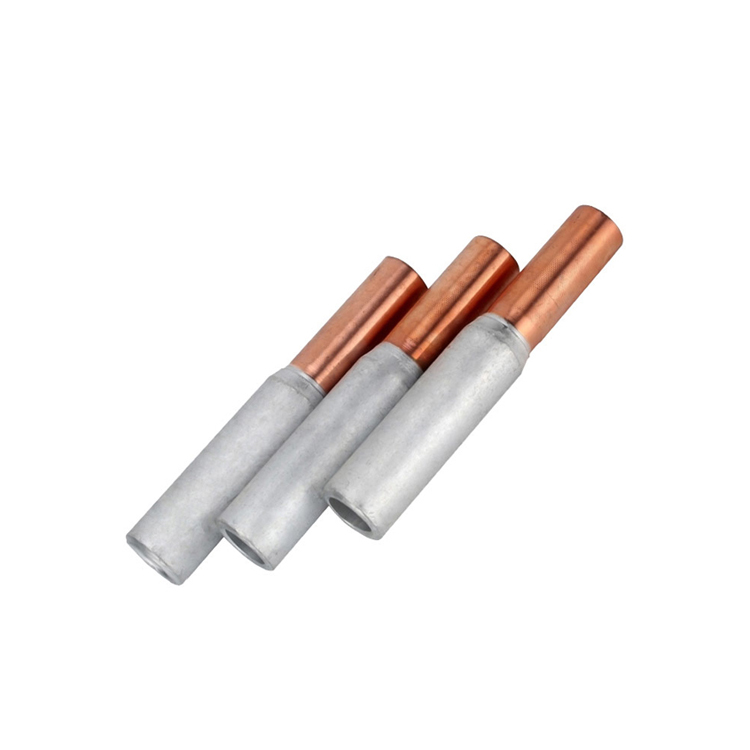

GTL copper cable connector

Material: E-CU A1-99.5%
Surface treatment: Bright
Product property: Due to the coupling effect when aluminum comes in contact with copper corrosion will happen in a short time currently the best solution is to use aluminum-copper bimetal connectors, A bimetal link should be used for joint the friction welding is well done and its aluminum barrel capped is filled with joint compound to avoid oxidization.

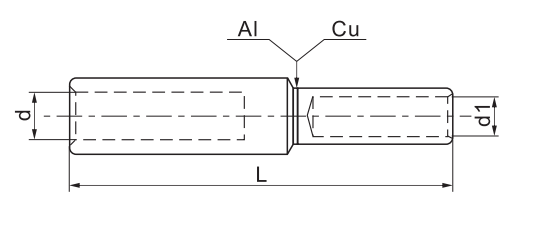

Type	Dimensions(mm)
Type	L	d	d1
GTL-AL25/CU16	70	6.8	5.5
GTL-AL35/CU16	76	8	5.5
GTL-AL35/CU25	82	8	7
GTL-AL50/CU25	85	9.8	7
GTL-AL50/CU35	90	9.8	8.2
GTL-AL70/CU35	95	11.2	8.2
GTL-AL70/CU50	100	11.2	10
GTL-AL95/CU50	105	13.2	10
GTL-AL95/CU70	110	13.2	11.5
GTL-AL120/CU70	116	14.7	11.5
GTL-AL120/CU95	118	14.7	13.5
GTL-AL150/CU95	120	16.3	13.5
GTL-AL150/CU120	122	16.3	15.5
GTL-AL185/CU120	128	18.3	15.5
GTL-AL185/CU150	130	18.3	17
GTL-AL240/CU150	132	21	17
GTL-AL240/CU185	135	21	19
GTL-AL240/CU240	140	121	21.5
GTL-AL300/CU240	145	23.3	21.5
GTL-AL300/CU300	150	23.3	24.5
