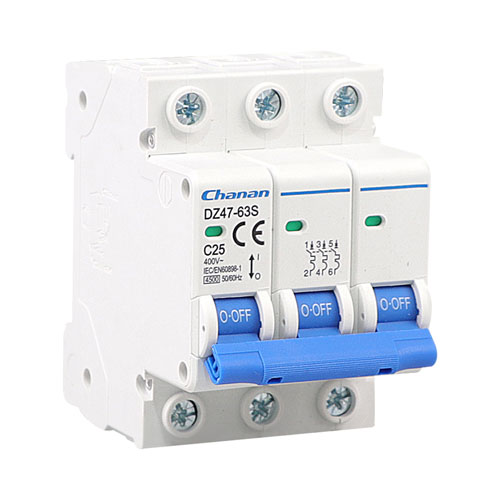

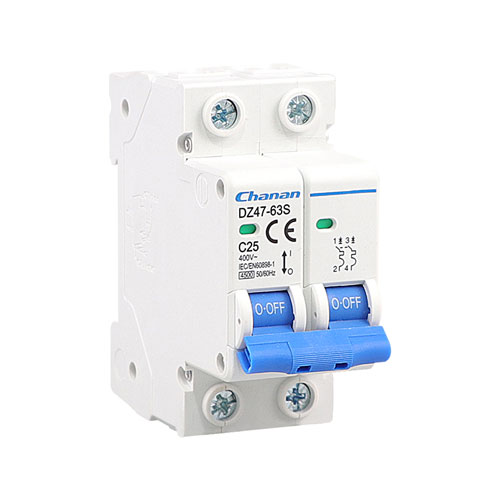

DZ47-63S 4.5kA/6kA Economical Circuit Breaker

DZ47-63S Series MCB has Dual-connection convenient for both standard busbar and conductor connection;Much longer service life thanks to energy-storage operating mechanism;Enclosure and functional parts made from imported plastics with flame-retardant, heat-resistant, and impulse-proof properties;Higher current-limiting ;capacity ensuring a cost-effective range of products.

feedback
Product Description

DZ47-63S MCB has Dual-connection convenient for both standard busbar and conductor connection;Much longer service life thanks to energy-storage operating mechanism;Enclosure and functional parts made from imported plastics with flame-retardant,heat-resistant,and impulse-proof properties;Higher current-limiting;capacity ensuring a cost-effective range of products.

Electrical Features Rated current In 1,2,3,4,5,6,8,10,13,16,20,25,32,40,50,63A
Poles 1P,1P+N,2P,3P,3P+N,4P
Rated voltage Ue 240/415V
Insulation voltage Ui 500V
Rated frequency 50/60Hz
Rated breaking capacity 4,500A
Energy limiting class 3
Rated impulse withstand voltage(1.5/50) Uimp 4,000V
Dielectric test voltage at ind. Freq. for 1 min 2kV
Pollution degree 2
Thermo-magnetic release characteristic B,C,D
Mechanical Features Electrical life 4,000 Cycles
Mechanical life 10,000 Cycles
Contact position indicator Yes
Protection degree IP20
Reference temperature for setting of thermal element 30℃
Ambient temperature (with daily average≤35℃) -5℃~+40℃
Storage temperature -25℃~+70℃
Installation Terminal connection type Cable/Pin-type busbar
Terminal size top/bottom for cable 25mm2   18-3AWG
Terminal size top/bottom for busbar 25mm  18-3AWG
Tightening torque 2.5Nm  22In-Ibs
Mounting On DIN rail EN 60715 (35mm) by means of fast clip device
Connection Power supply in both directions

Combination with accessories

Auxiliary contact

DZ47-OF

Alarm contact DZ47-FB
Shunt release DZ47-MX
Over/Under voltage release DZ47-MV+MN

MCB Characteristics Curves



Thermal Tripping

Magnetic Tripping

Asper IEC60898

No tripping current

Tripping current I2

Time Limits t

Hold current I4

Trip current I5

Time Limits t

B Curve

1.13×IN



≥1h

3×IN



≥0.1s



1.45×IN

<1h



5×IN

<0.1s



C Curve

1.13×IN   ≥1h 5×IN   ≥0.1s
  1.45×IN <1h

10×IN

<0.1s

D Curve

1.13×IN



≥1h

10×IN



≥0.1s

  1.45×IN

<1h



20×IN

<0.1s

Tripping characteristics

Based on the Tripping Characteristics, MCB are available in“B”,“C”and“D”curve to suit different types of applications.

“B”Curve for protection of electrical circuits with equipment that does not cause surge current (lighting and distribution circuits) Short circuit release is set to (3-5)In.

“C”Curve for protection of electrical circuits with equipment that cause surge current (inductive loads and motor circuits) Short circuit release is set to (5-10)In.

“D”Curve for protection of electrical circuits with cause high inrush  current ,typically 12-15 times the thermal rated current (transformes, x-ray machines etc,)Short circuit release is set to (10-20)In.

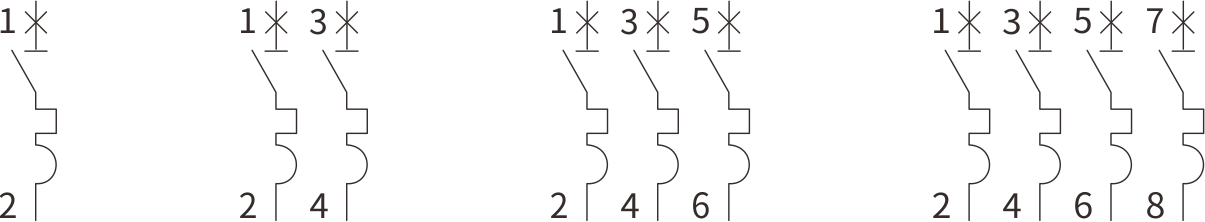

Circuit Diagram

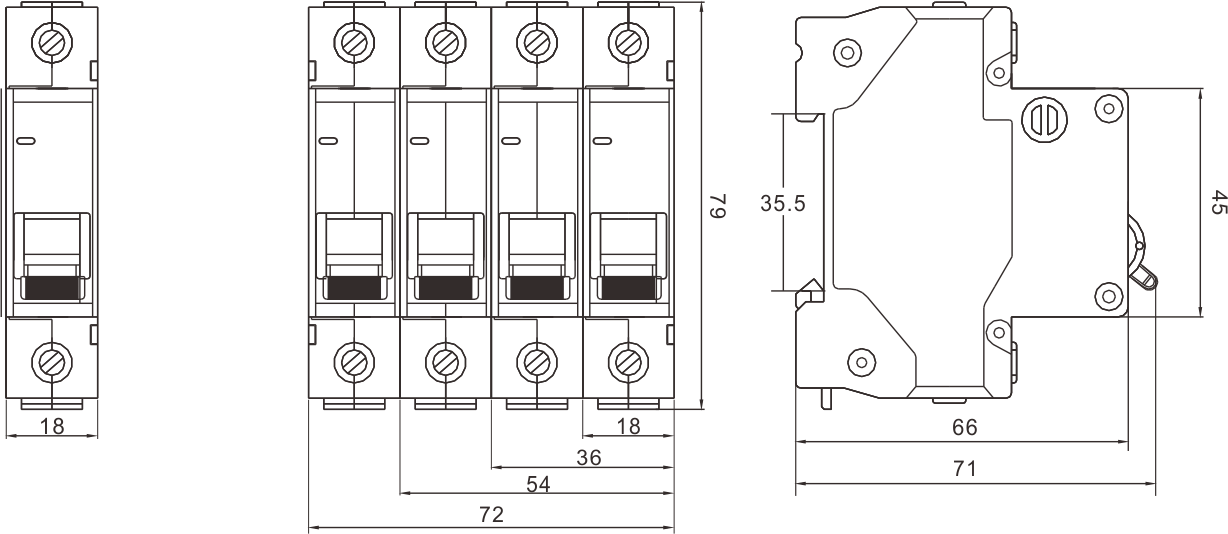

Overall and Installation Dimension(mm)
