CAMNS low Voltage withdrawable type switchgear is used for conversion, distribution and control of electrical energy of power distribution equipment of AC 50~60Hz, 400V. It is mainly used in airports, power plants, substations, petrochemical plants, metallurgic plants, steel plants, transportation energy, light textile and residential districts, high-rise buildings, etc. The switchgear conforms toIEC439, GB/T7251.1 and other professional standard. It uses standard module design, and it can respectively form standard units such as protection, operation, conversion control, regulation, determination and indication. Over 200 types of assembly parts can form frame structures of different schemes, and form fixed separation or drawer units. The users can select assemblies arbitrarily according to their demands.
Installation Site: Indoor
Altitude: No more than 2000m.
Earthquake Intensity: No more than 8 degrees.
Ambient Temperature: No more than +40℃ and no less than – 15℃. Average temperature is no more than + 35℃ within 24 hours.
Relative Humidity: the average daily value is no more than 95%, the average monthly value is no more than 90%.
Installation locations: without fire, explosion danger, serious pollution, chemical corrosion and violent vibration.
The operation of the drawer is combined with the control handle. It has simplified the operation, and overcome the shortcomings that the operation of traditional MNS cabinet is complicated,
The MCC unit has a lot of combinations, with compact structure. The cabinet body can share busbars, which are arranged back-to-back. A maximum of 36 lops can be assembled for each cabinet.
The cabinet body can be arranged back-to-back or against the wall, which can save installation space.
All of the standard components are selected to facilitate the design of engineering designers.
The whole series is standardized; the structure is versatile and the assembly is flexible.
lt can accommodate more units in a cabinet, and it can be freely combined into different types, such as fixed type and drawer type. The same specification drawer unit can be exchanged conveniently.
The combination performance is stable and the earth continuity is good.
The device has high continuity and reliability.
The product has passed the aseismic, salt fog and EMC electromagnetic compatibility test, and the operation is safe and reliable.
|1||Rated Operation Voltage||V||400|
|2||Rated Insulation Voltage||V||690|
|4||Main Bus-Bar||Rated Current||A||≤6300|
|Rated Short-time Withstand Current||kA||≤100|
|Rated Peak Withstand Current||kA||≤220|
|5||Distribution Bus||Rated Current||A||≤1300|
|Rated Short-time Withstand Current||kA||≤50|
|Rated Peak Withstand Current||kA||≤105|
|6||Frequency Withstand Voltage in 1min of Aux Control Loop||kV||1.89|
|7||Rated impulse Withstand Voltage||kV||8|
|8||Degrass of Protection||IP||IP40|

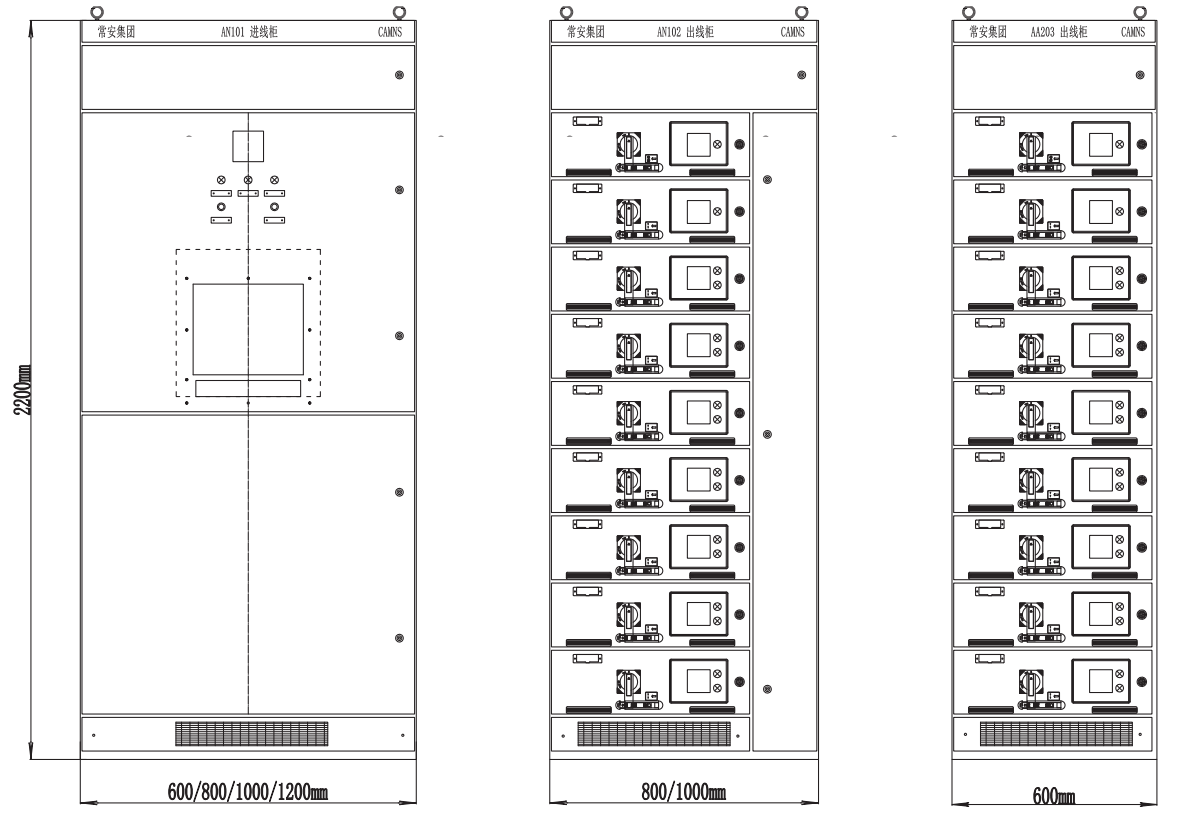

The minimum width of the drawer outlet cabinet is 600mm.
Cabinet depth 800，1000mm can be selected.
