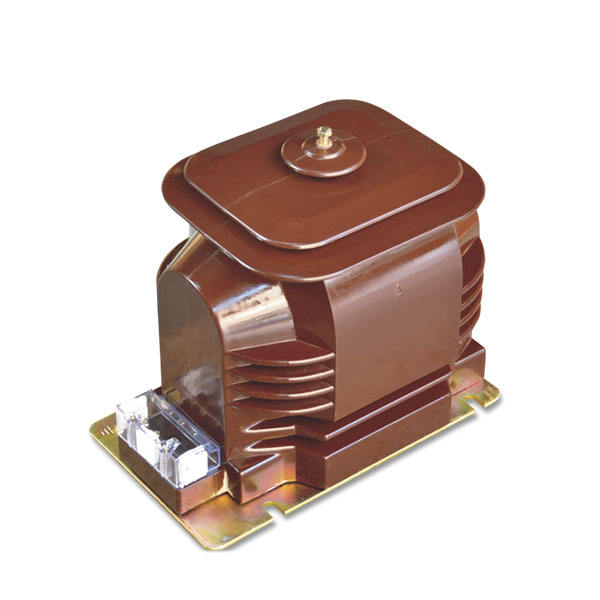

JDZ(X)11 Indoor single phase voltage transformer (VT)

Overview:
JDZ11 series voltage transformers are epoxy resin cast fully enclosed structure, suitable for electric energy metering, voltage monitoring and relay protection in power systems with rated frequency 50Hz or 60Hz, rated voltage 15kV and 20kV. This product complies with IEC60044-2 standard.
if need any qualification or test report,please email to info@changangroup.com.cn
Inquire Now

JDZ(X)11 Indoor single phase voltage transformer (VT)

Inquire Now
Description

Overview

JDZ11 series voltage transformers are epoxy resin cast fully enclosed structure, suitable for electric energy metering, voltage monitoring and relay protection in power systems with rated frequency 50Hz or 60Hz, rated voltage 15kV and 20kV. This product complies with IEC60044-2 standard.
This series of voltage transformers is epoxy resin insulated and fully enclosed structure, which is resistant to pollution and humidity, and is also suitable for use in tropical areas. The transformer is small in size, light in weight, small in partial discharge capacity and strong in overvoltage resistance, and is suitable for installation in any position and in any direction.

Parameter

Technical Data

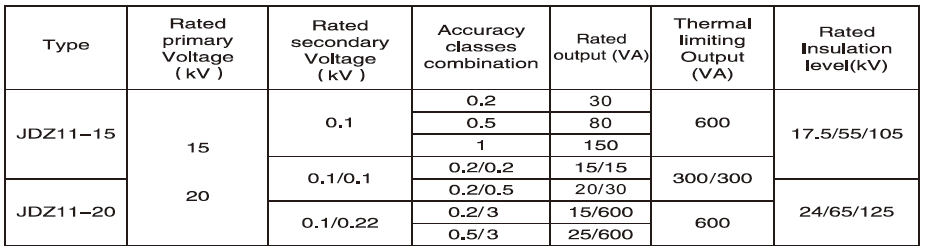

JDZ11-15/20

JDZX11-20

Outline Dimension

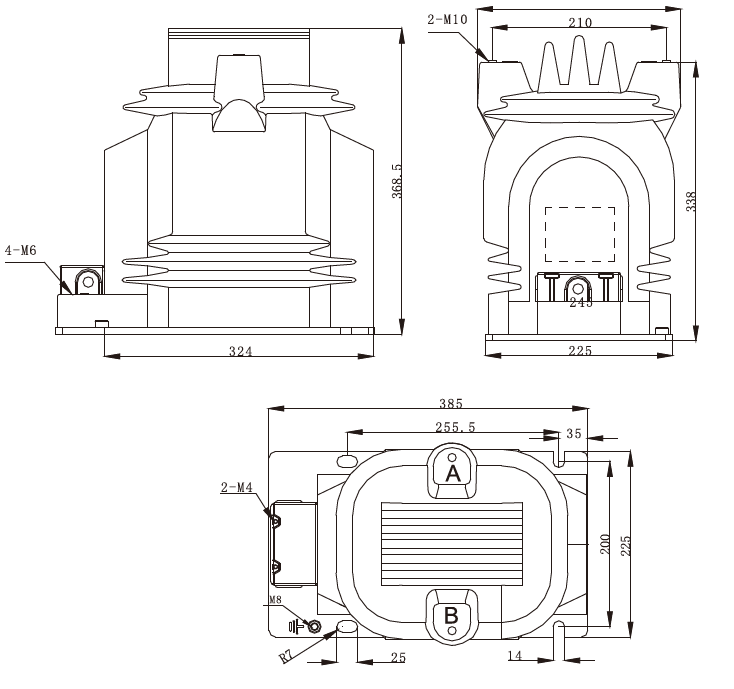

JDZ11-15/20

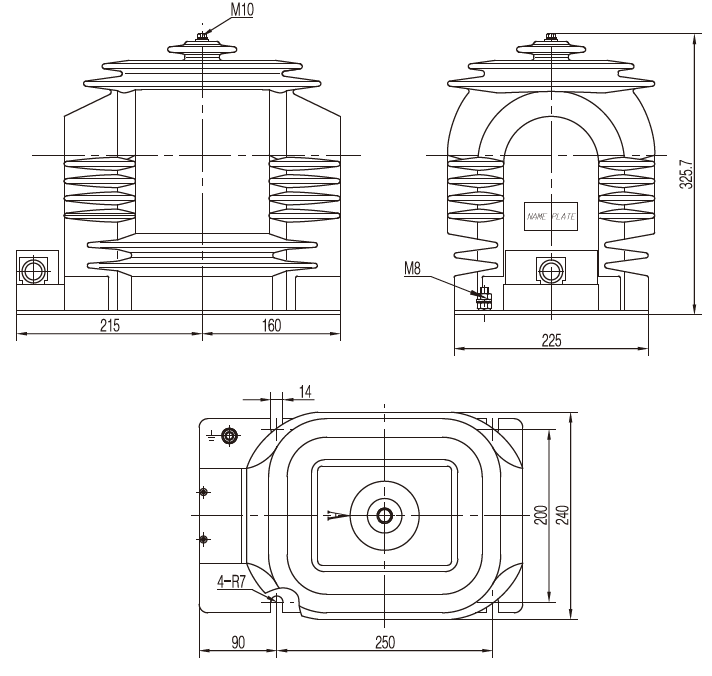

JDZX11-20
